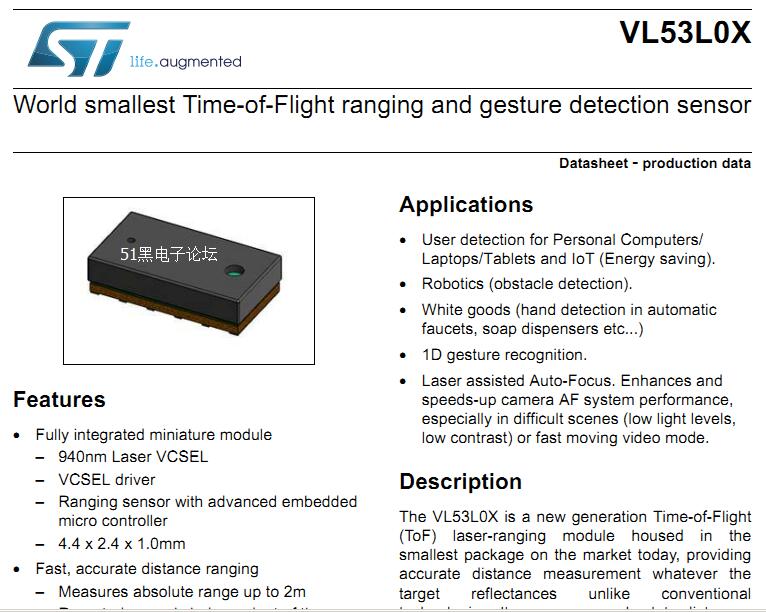

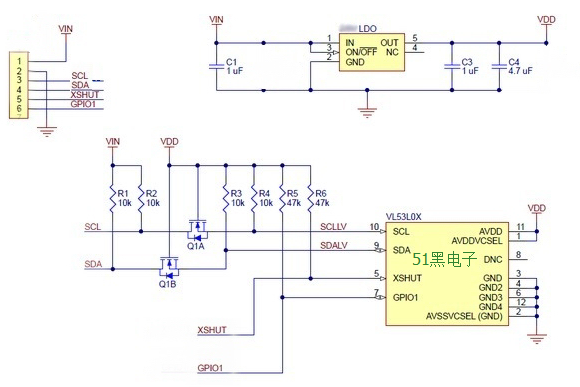

电路原理图如下：


VL53L0X 的Arduino源代码

1. //the original code by Ted Meyers

2.

3. #include <Wire.h>

4.

5. #define VL53L0X_REG_IDENTIFICATION_MODEL_ID         0xc0

6. #define VL53L0X_REG_IDENTIFICATION_REVISION_ID      0xc2

7. #define VL53L0X_REG_PRE_RANGE_CONFIG_VCSEL_PERIOD   0x50

8. #define VL53L0X_REG_FINAL_RANGE_CONFIG_VCSEL_PERIOD 0x70

9. #define VL53L0X_REG_SYSRANGE_START                  0x00

10. #define VL53L0X_REG_RESULT_INTERRUPT_STATUS         0x13

11. #define VL53L0X_REG_RESULT_RANGE_STATUS             0x14

12. #define address 0x29

13.

14. byte gbuf[16];

15.

16. void setup() {

17.   // put your setup code here, to run once:

18.   Wire.begin();        // join i2c bus (address optional for master)

19.   Serial.begin(9600);  // start serial for output

20.   Serial.println("VLX53LOX test started.");

21. }

22.

23. void loop() {

24.   Serial.println("----- START TEST ----");

25.   test();

26.   Serial.println("----- END TEST ----");

27.   Serial.println("");

28.   delay(1000);

29. }

30.

31. void test() {

32.   byte val1 = read_byte_data_at(VL53L0X_REG_IDENTIFICATION_REVISION_ID);

33.   Serial.print("Revision ID: "); Serial.println(val1);

34.

35.   val1 = read_byte_data_at(VL53L0X_REG_IDENTIFICATION_MODEL_ID);

36.   Serial.print("Device ID: "); Serial.println(val1);

37.

38.   val1 = read_byte_data_at(VL53L0X_REG_PRE_RANGE_CONFIG_VCSEL_PERIOD);

39.   Serial.print("PRE_RANGE_CONFIG_VCSEL_PERIOD="); Serial.println(val1);

40.   Serial.print(" decode: "); Serial.println(VL53L0X_decode_vcsel_period(val1));

41.

42.   val1 = read_byte_data_at(VL53L0X_REG_FINAL_RANGE_CONFIG_VCSEL_PERIOD);

43.   Serial.print("FINAL_RANGE_CONFIG_VCSEL_PERIOD="); Serial.println(val1);

44.   Serial.print(" decode: "); Serial.println(VL53L0X_decode_vcsel_period(val1));

45.

46.   write_byte_data_at(VL53L0X_REG_SYSRANGE_START, 0x01);

47.

48.   byte val = 0;

49.   int cnt = 0;

50.   while (cnt < 100) { // 1 second waiting time max

51.     delay(10);

52.     val = read_byte_data_at(VL53L0X_REG_RESULT_RANGE_STATUS);

53.     if (val & 0x01) break;

54.     cnt++;

55.   }

56.   if (val & 0x01) Serial.println("ready"); else Serial.println("not ready");

57.

58.   read_block_data_at(0x14, 12);

59.   uint16_t acnt = makeuint16(gbuf[7], gbuf[6]);

60.   uint16_t scnt = makeuint16(gbuf[9], gbuf[8]);

61.   uint16_t dist = makeuint16(gbuf[11], gbuf[10]);

62.   byte DeviceRangeStatusInternal = ((gbuf[0] & 0x78) >> 3);

63.

64.   Serial.print("ambient count: "); Serial.println(acnt);

65.   Serial.print("signal count: ");  Serial.println(scnt);

66.   Serial.print("distance ");       Serial.println(dist);

67.   Serial.print("status: ");        Serial.println(DeviceRangeStatusInternal);

68. }

69.

70. uint16_t bswap(byte b[]) {

71.   // Big Endian unsigned short to little endian unsigned short

72.   uint16_t val = ((b[0] << 8) & b[1]);

73.   return val;

74. }

75.

76. uint16_t makeuint16(int lsb, int msb) {

77.     return ((msb & 0xFF) << 8) | (lsb & 0xFF);

78. }

79.

80. void write_byte_data(byte data) {

81.   Wire.beginTransmission(address);

82.   Wire.write(data);

83.   Wire.endTransmission();

84. }

85.

86. void write_byte_data_at(byte reg, byte data) {

87.   // write data word at address and register

88.   Wire.beginTransmission(address);

89.   Wire.write(reg);

90.   Wire.write(data);

91.   Wire.endTransmission();

92. }

93.

94. void write_word_data_at(byte reg, uint16_t data) {

95.   // write data word at address and register

96.   byte b0 = (data &0xFF);

97.   byte b1 = ((data >> 8) && 0xFF);

98.

99.   Wire.beginTransmission(address);

100.   Wire.write(reg);

101.   Wire.write(b0);

102.   Wire.write(b1);

103.   Wire.endTransmission();

104. }

105.

106. byte read_byte_data() {

107.   Wire.requestFrom(address, 1);

108.   while (Wire.available() < 1) delay(1);

109.   byte b = Wire.read();

110.   return b;

111. }

112.

113. byte read_byte_data_at(byte reg) {

114.   //write_byte_data((byte)0x00);

115.   write_byte_data(reg);

116.   Wire.requestFrom(address, 1);

117.   while (Wire.available() < 1) delay(1);

118.   byte b = Wire.read();

119.   return b;

120. }

121.

122. uint16_t read_word_data_at(byte reg) {

123.   write_byte_data(reg);

124.   Wire.requestFrom(address, 2);

125.   while (Wire.available() < 2) delay(1);

126.   gbuf[0] = Wire.read();

127.   gbuf[1] = Wire.read();

128.   return bswap(gbuf);

129. }

130.

131. void read_block_data_at(byte reg, int sz) {

132.   int i = 0;

133.   write_byte_data(reg);

134.   Wire.requestFrom(address, sz);

135.   for (i=0; i<sz; i++) {

136.     while (Wire.available() < 1) delay(1);

137.     gbuf[i] = Wire.read();

138.   }

139. }

140.

141.

142. uint16_t VL53L0X_decode_vcsel_period(short vcsel_period_reg) {
