TB67H450FNG引脚图与pdf英文资料 PWM斩波式直流有刷电机驱动芯片

PWM斩波式直流有刷电机驱动器
下载见附件
PWM Chopper Type DC Brushed Motor Driver
The TB67H450FNG is a PWM chopper type DC brushed motor driver.
One channel of motor output block is embedded.
Fabricated with the BiCD process, the TB67H450FNG is rated at output
voltage 50 V, maximum current 3.5A.


Features
・  Monolithic IC using BiCD process
・  Capable of PWM constant current drive and direct PWM drive
・  Supporting 4 operation modes, Forward / Reverse / Brake / STOP (OFF)

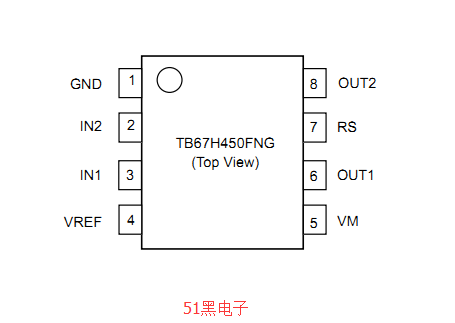

引脚图:
