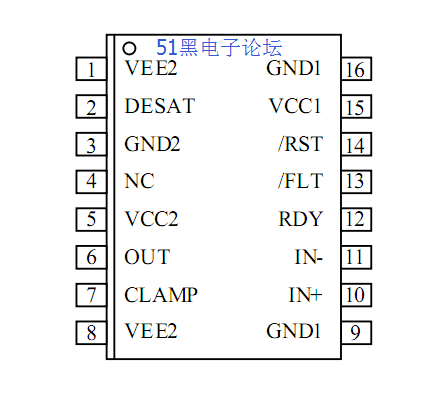

1ED020I12-F2芯片引脚图：

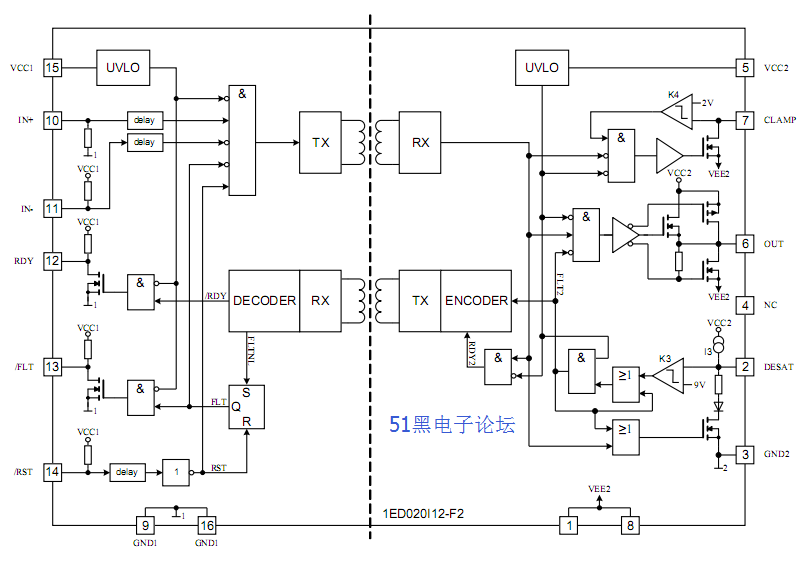

1ED020I12-F2功能框图：

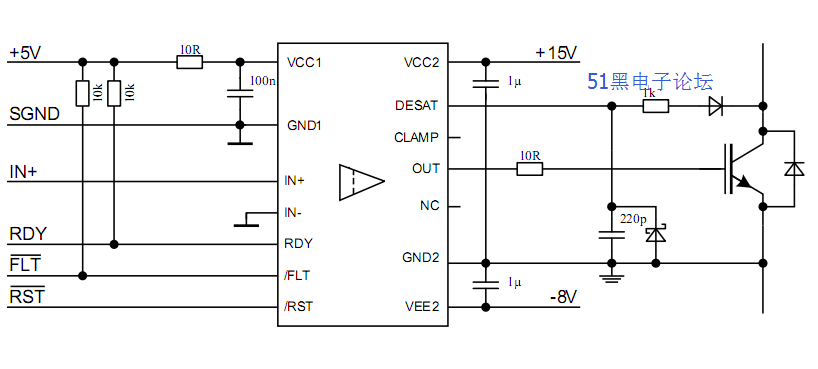

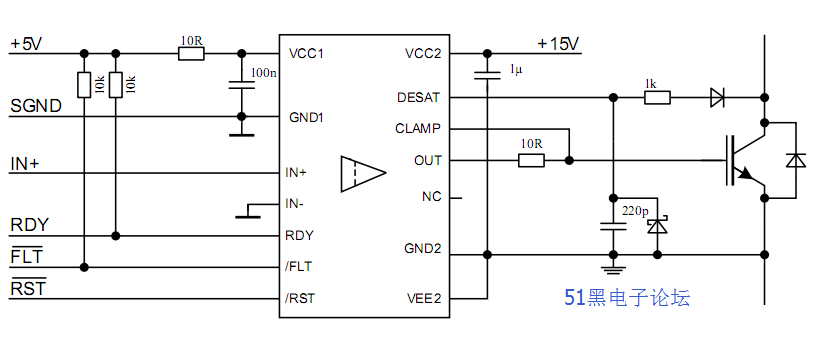

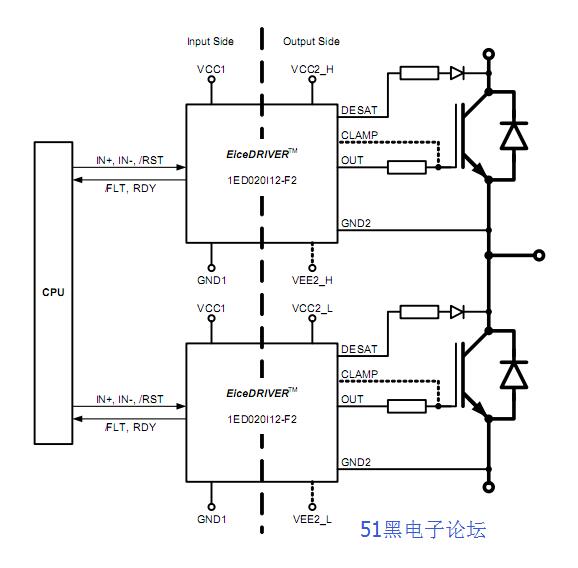

1ED020I12-F2电路图：
1Overview
Main Features
• Single channel isolated IGBT Driver
• For 600V/1200 V IGBTs
• 2 A rail-to-rail output
• Vcesat-detection
• Active Miller Clamp
Product Highlights
• Coreless transformer isolated driver
• Galvanic Insulation
• Integrated protection features
• Suitable for operation at high ambient temperature
Typical Application
• AC and Brushless DC Motor Drives
• High Voltage DC/DC-Converter
• UPS-Systems
• Welding
Description
The 1ED020I12-F2 is a galvanic isolated single channel IGBT driver in PG-DSO-16-15 package that provides an
output current capability of typically 2A.
All logic pins are 5V CMOS compatible and could be directly connected to a microcontroller.
The data transfer across galvanic isolation is realized by the integrated Coreless Transformer Technology.
The 1ED020I12-F2 provides several protection features like IGBT desaturation protection, active Miller clamping
and active shut down.
