这是我做的一个关于dc_power的校准软件附源码

ID:394574 · 发表于 2018-9-6 15:29

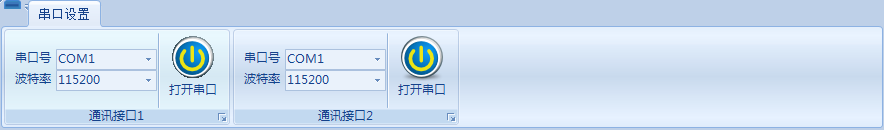

首选需要连接串口，之后就可以进行传输数据操作，
界面图形化，非常容易上手，源码都在里面了，有需要的话

可以学习一下源码

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.IO.Ports;
using ZedGraph;
using System.Threading;
using System.Collections;
namespace DC_POWER
{
public partial class Mainform : Form
{
private const float VOLTAGE_MAX = 30.00f, CURRENT_MAX = 4.000f;
public enum MODE
{
MODE_VOLTAGE = 0x00,
MODE_CURRENT = 0x01,
}
private MODE currentMode = MODE.MODE_VOLTAGE;
//与下位机通讯相关
public enum COM_CMD
{
//M2S: master to slave cmd, S2M: slave to master
USART_M2S_Output = 0x01, //输出控制（默认关）
USART_M2S_Mode = 0x02, //输出模式切换（默认电压模式）
USART_M2S_SetVal = 0x03, //Master2Slave设置期望值：[1-4]:电压; [5-8]:电流
USART_M2S_Cal = 0x04, //进入校准模式(只在下位机开机前几秒内能够进入校准模式)
USART_M2S_StepAdd = 0x05, //步进加
USART_M2S_StepSub = 0x06, //步进减
USART_M2S_FAN = 0x07, //风扇控制:[1]0关;1开;2自动（默认）
USART_M2S_STATE = 0x08, //实时数据发送状态：[1]1发送数据 0停止发送
USART_M2S_GetVal = 0x09, //获取前一次的设定值
USART_S2M_PreVal = 0x0A, //Slave2Master返回前一次的设定值:[1-4]:电压值; [5-8]:电流值
USART_S2M_RealVal = 0x0B, //Slave2Master返回的实际值:[1-4]:电压值; [5-8]:电流值
USART_S2M_RealTemp= 0x0C, //Slave2Master返回温度值：[1-4]:当前温度值
}
private const byte USART_FRAMEHEAD = 0xAA, USART_FRAMETAIL = 0x55, USART_FRAMECTRL = 0xA5;
private long m_TotalRxLostPackages = 0; //记录总的丢包数
private long m_RxPackageDataCount = 0; //记录接收到的一帧的字节数
private const int m_MaxPackageSize = 4096; //一帧最大的字节数
private byte[] m_pRxBuf = new byte[m_MaxPackageSize]; //接收缓存
float voltageSet = 0.0f, currentSet = 0.0f, voltageGet = 0.0f, currentGet = 0.0f;
//绘图相关
public struct CurveStruct
{
public PointPairList pointList;//曲线数据
public Color lineColor;//曲线颜色
public SymbolType lineStyle;//线型
public string curveName;//名称
public LineItem curve; //曲线
public float scaleFactor;//比例系数
public byte lineWidth; //线宽
}
private Hashtable curveHashTable = new Hashtable();//用来保存所有的曲线
private GraphPane mGraphPane;
private long tickStart = 0;
double currentTime;
//double previousTime = 0;
CurveStruct mCurveStructVolSet = new CurveStruct();
CurveStruct mCurveStructVolGet = new CurveStruct();
CurveStruct mCurveStructCurSet = new CurveStruct();
CurveStruct mCurveStructCurGet = new CurveStruct();
//线程相关
private Queue<byte> receiveByteQueue = new Queue<byte>();//串口缓存队列
private Thread _dataParseThread = null; //解析串口接收数据线程
private bool _runDataParseThread = false; //决定接收线程是否退出
public Mainform()
{
InitializeComponent();
}
private void Mainform_Load(object sender, EventArgs e)
{
//初始化串口列表，添加本地可用串口号
if (SerialPort.GetPortNames().Length != 0)
{
foreach (string vPortName in SerialPort.GetPortNames())
{
RibbonLabel item = new RibbonLabel();
item.Text = vPortName;
ribbonComboBoxCom1.DropDownItems.Add(item);
ribbonComboBoxCom2.DropDownItems.Add(item);
}
ribbonComboBoxCom1.TextBoxText = SerialPort.GetPortNames()[0];
ribbonComboBoxCom2.TextBoxText = SerialPort.GetPortNames()[0];
}
mGraphPane = zedGraphControl1.GraphPane;
mGraphPane.Title.Text = "DC_POWER";
//添加两个Y轴，分别显示电压、电流
mGraphPane.XAxis.Title.Text = "time";
mGraphPane.YAxis.Title.Text = "Voltage";
mGraphPane.Y2Axis.Title.Text = "Current";
mGraphPane.Y2Axis.IsVisible = true;
mGraphPane.YAxis.Scale.FontSpec.FontColor = Color.Red;
mGraphPane.YAxis.Title.FontSpec.FontColor = Color.Red;
mGraphPane.Y2Axis.Scale.FontSpec.FontColor = Color.Blue;
mGraphPane.Y2Axis.Title.FontSpec.FontColor = Color.Blue;
knob_Voltage.Enabled = false;
knob_Current.Enabled = false;
slideButtonMode.Enabled = false;
slideButtonOutput.Enabled = false;
glassButtonStepAdd.Enabled = false;
glassButtonCAL.Enabled = false;
glassButtonStepSub.Enabled = false;
}
private void Mainform_FormClosing(object sender, FormClosingEventArgs e)
{
if (serialPort1.IsOpen)
{
ribbonButtonOpenCom1_Click(sender, e);
}
if (serialPort2.IsOpen)
{
ribbonButtonOpenCom2_Click(sender, e);
}
}
private void ResetGraphPane()
{
mGraphPane.XAxis.Scale.Min = 0; //X轴最小值0
mGraphPane.XAxis.Scale.Max = 30; //X轴最大30
mGraphPane.XAxis.Scale.MinorStep = 1;//X轴小步长1,也就是小间隔
mGraphPane.XAxis.Scale.MajorStep = 5;//X轴大步长为5，也就是显示文字的大间隔
mGraphPane.YAxis.Scale.Min = 0; //电压轴最小值0
mGraphPane.YAxis.Scale.Max = VOLTAGE_MAX;//电压最大值
mGraphPane.Y2Axis.Scale.Min = 0; //电流轴最小值0
mGraphPane.Y2Axis.Scale.Max = CURRENT_MAX;//电流最大值
//清除原有曲线
if (mGraphPane.CurveList.Count != 0)
{
mGraphPane.CurveList.Clear();
mGraphPane.GraphObjList.Clear();
curveHashTable.Clear();
}
//更新X和Y轴的范围
zedGraphControl1.AxisChange();
//更新图表
zedGraphControl1.Invalidate();
//添加四条新的曲线：电压设定曲线、电压实际曲线、电流设定曲线、实际电流曲线
mCurveStructVolSet.curveName = "SET_V";
mCurveStructVolSet.pointList = new PointPairList();
mCurveStructVolSet.lineColor = Color.Brown;
mCurveStructVolSet.lineStyle = SymbolType.None;
mCurveStructVolSet.lineWidth = 2;
mCurveStructVolSet.scaleFactor = 1;// 360.0f / 4000.0f;
mCurveStructVolSet.curve = mGraphPane.AddCurve(
mCurveStructVolSet.curveName,
mCurveStructVolSet.pointList,
mCurveStructVolSet.lineColor,
mCurveStructVolSet.lineStyle);
mCurveStructVolSet.curve.Line.Width = mCurveStructVolSet.lineWidth;
curveHashTable.Add("SET_V", mCurveStructVolSet);
mCurveStructVolGet.curveName = "GET_V";
mCurveStructVolGet.pointList = new PointPairList();
mCurveStructVolGet.lineColor = Color.Red;
mCurveStructVolGet.lineStyle = SymbolType.None;
mCurveStructVolGet.lineWidth = 2;
mCurveStructVolGet.scaleFactor = 1;// 360.0f / 4000.0f;
mCurveStructVolGet.curve = mGraphPane.AddCurve(
mCurveStructVolGet.curveName,
mCurveStructVolGet.pointList,
mCurveStructVolGet.lineColor,
mCurveStructVolGet.lineStyle);
mCurveStructVolGet.curve.Line.Width = mCurveStructVolGet.lineWidth;
curveHashTable.Add("GET_V", mCurveStructVolGet);
mCurveStructCurSet.curveName = "SET_I";
mCurveStructCurSet.pointList = new PointPairList();
mCurveStructCurSet.lineColor = Color.DarkBlue;
mCurveStructCurSet.lineStyle = SymbolType.None;
mCurveStructCurSet.lineWidth = 2;
mCurveStructCurSet.scaleFactor = 1;// 360.0f / 4000.0f;
mCurveStructCurSet.curve = mGraphPane.AddCurve(
mCurveStructCurSet.curveName,
mCurveStructCurSet.pointList,
mCurveStructCurSet.lineColor,
mCurveStructCurSet.lineStyle);
mCurveStructCurSet.curve.Line.Width = mCurveStructCurSet.lineWidth;
curveHashTable.Add("SET_I", mCurveStructCurSet);
mCurveStructCurSet.curve.IsY2Axis = true;
mCurveStructCurGet.curveName = "GET_I";
mCurveStructCurGet.pointList = new PointPairList();
mCurveStructCurGet.lineColor = Color.Blue;
mCurveStructCurGet.lineStyle = SymbolType.None;
mCurveStructCurGet.lineWidth = 2;
mCurveStructCurGet.scaleFactor = 1;// 360.0f / 4000.0f;
mCurveStructCurGet.curve = mGraphPane.AddCurve(
mCurveStructCurGet.curveName,
mCurveStructCurGet.pointList,
mCurveStructCurGet.lineColor,
mCurveStructCurGet.lineStyle);
mCurveStructCurGet.curve.Line.Width = mCurveStructCurGet.lineWidth;
curveHashTable.Add("GET_I", mCurveStructCurGet);
mCurveStructCurGet.curve.IsY2Axis = true;
}
private void PrepareReceiveData()
{
_dataParseThread = new Thread(new ThreadStart(DataParseThreadFunc));
_runDataParseThread = true;
}
private void StartReciveData()
{
PrepareReceiveData();
if (_dataParseThread != null)
{
_dataParseThread.Start();
}
}
private void StopReceiveData()
{
_runDataParseThread = false;
if (_dataParseThread != null)
{
_dataParseThread.Abort();
_dataParseThread = null;
}
}
private void knob_Voltage_ValueChanged(object sender, EventArgs e)
{
thermometerVoltage.Value = (float)knob_Voltage.Value / 10.0f;
lbDigitalMeter_Voltage_Set.Value = (float)knob_Voltage.Value / 10.0f;
float voltage = (float)lbDigitalMeter_Voltage_Set.Value;
float current = (float)lbDigitalMeter_Current_Set.Value;
byte[] data = new byte[9];
data[0] = (byte)COM_CMD.USART_M2S_SetVal;
for(int iter = 0; iter < 4; iter++)
{
data[1+iter] = BitConverter.GetBytes(voltage)[iter];
data[5+iter] = BitConverter.GetBytes(current)[iter];
}
PackData2Frame(data);
}
private void knob_Current_ValueChanged(object sender, EventArgs e)
{
thermometerCurrent.Value = (float)knob_Current.Value / 100.0f;
lbDigitalMeter_Current_Set.Value = (float)knob_Current.Value / 100.0f;
float voltage = (float)lbDigitalMeter_Voltage_Set.Value;
float current = (float)lbDigitalMeter_Current_Set.Value;
byte[] data = new byte[9];
data[0] = (byte)COM_CMD.USART_M2S_SetVal;
for (int iter = 0; iter < 4; iter++)
{
data[1 + iter] = BitConverter.GetBytes(voltage)[iter];
data[5 + iter] = BitConverter.GetBytes(current)[iter];
}
PackData2Frame(data);
}
private void slideButtonOutput_Click(object sender, EventArgs e)
{
if (labelOutput.Text == "OFF")
{
labelOutput.Text = "ON";
PackData2Frame(new byte[] { (byte)COM_CMD.USART_M2S_Output});//开输出
Thread.Sleep(10);
PackData2Frame(new byte[] { (byte)COM_CMD.USART_M2S_STATE, 0x01 });//开始发送数据
//开始接收数据
tickStart = Environment.TickCount;
StartReciveData();
}
else
{
labelOutput.Text = "OFF";
PackData2Frame(new byte[] { (byte)COM_CMD.USART_M2S_Output });//关输出
Thread.Sleep(10);
PackData2Frame(new byte[] { (byte)COM_CMD.USART_M2S_STATE, 0x00 });//停止发送数据
//停止接收数据
StopReceiveData();
}
}
private void slideButtonMode_Click(object sender, EventArgs e)
{
if(currentMode == MODE.MODE_VOLTAGE)
{
labelMode.Text = "Mode: A";
currentMode = MODE.MODE_CURRENT;
PackData2Frame(new byte[] { (byte)COM_CMD.USART_M2S_Mode, 0x01});//电流模式
}
else
{
labelMode.Text = "Mode: V";
currentMode = MODE.MODE_VOLTAGE;
PackData2Frame(new byte[] { (byte)COM_CMD.USART_M2S_Mode, 0x00});//电压模式
}
}
private void ribbonButtonOpenCom1_Click(object sender, EventArgs e)
{
try
{
if (ribbonButtonOpenCom1.Text == "打开串口")
{
serialPort1.PortName = ribbonComboBoxCom1.TextBoxText;
serialPort1.BaudRate = int.Parse(ribbonComboBoxBaud1.TextBoxText);
serialPort1.StopBits = System.IO.Ports.StopBits.One;
serialPort1.Parity = System.IO.Ports.Parity.None;
serialPort1.DataBits = 8;
serialPort1.Open();
//成功打开后设置按钮相应的状态
ribbonButtonOpenCom1.Text = "关闭串口";
ribbonButtonOpenCom1.Image = Image.FromFile(Application.StartupPath + "\\ICON\\shutdown.ico");
ribbonComboBoxCom1.Enabled = false;
ribbonComboBoxBaud1.Enabled = false;
//复位各表盘的数值
thermometerVoltage.Value = 0;
thermometerCurrent.Value = 0;
thermometerTemp.Value = 30;
lbDigitalMeter_Voltage_Set.Value = 0;
lbDigitalMeter_Current_Set.Value = 0;
lbDigitalMeter_Voltage_Get.Value = 0;
lbDigitalMeter_Current_Get.Value = 0;
knob_Voltage.Value = 0;
knob_Current.Value = 0;
slideButtonMode.Checked = false;
slideButtonOutput.Checked = false;
//重新设置坐标，清空原有曲线后添加电压、电流设定曲线
ResetGraphPane();
knob_Voltage.Enabled = true;
knob_Current.Enabled = true;
slideButtonMode.Enabled = true;
slideButtonOutput.Enabled = true;
glassButtonStepAdd.Enabled = true;
glassButtonCAL.Enabled = true;
glassButtonStepSub.Enabled = true;
//获取下位机前一次电压、电流的设定值
byte[] data = new byte[] { (byte)COM_CMD.USART_M2S_GetVal };
PackData2Frame(data);
}
else
{
//关闭下位机输出
PackData2Frame(new byte[] { (byte)COM_CMD.USART_M2S_STATE, 0x00 });//停止发送数据
PackData2Frame(new byte[] { (byte)COM_CMD.USART_M2S_Output, 0x00 });//关输出
Thread.Sleep(200);
serialPort1.Close();
ribbonButtonOpenCom1.Text = "打开串口";
ribbonButtonOpenCom1.Image = Image.FromFile(Application.StartupPath + "\\icon\\standby.ico");
ribbonComboBoxCom1.Enabled = true;
ribbonComboBoxBaud1.Enabled = true;
//停止接收数据
StopReceiveData();
knob_Voltage.Enabled = false;
knob_Current.Enabled = false;
slideButtonMode.Enabled = false;
slideButtonOutput.Enabled = false;
glassButtonStepAdd.Enabled = false;
glassButtonCAL.Enabled = false;
glassButtonStepSub.Enabled = false;
}
}
catch (Exception error)
{
MessageBox.Show(error.ToString());
}
}
float voltage = 0, current = 0, temp = 0;
byte[] tmpArray = new byte[4];
private void DataParseThreadFunc()
{
while (_runDataParseThread)
{
lock (this)
{
if (receiveByteQueue.Count > 0)
{
if (AnalyzePackage(receiveByteQueue.Dequeue()))
{
currentTime = (Environment.TickCount - tickStart) / 1000.0;// +previousTime;
switch (m_pRxBuf[0])
{
case (byte)COM_CMD.USART_S2M_PreVal://前一次设置的电压、电流
tmpArray[0] = m_pRxBuf[1];
tmpArray[1] = m_pRxBuf[2];
tmpArray[2] = m_pRxBuf[3];
tmpArray[3] = m_pRxBuf[4];
voltage = BitConverter.ToSingle(tmpArray, 0);
tmpArray[0] = m_pRxBuf[5];
tmpArray[1] = m_pRxBuf[6];
tmpArray[2] = m_pRxBuf[7];
tmpArray[3] = m_pRxBuf[8];
current = BitConverter.ToSingle(tmpArray, 0);
knob_Voltage.Value = (int)(voltage*10);
knob_Current.Value = (int)(current*100);
break;
case (byte)COM_CMD.USART_S2M_RealVal://实时电压、电流数据
tmpArray[0] = m_pRxBuf[1];
tmpArray[1] = m_pRxBuf[2];
tmpArray[2] = m_pRxBuf[3];
tmpArray[3] = m_pRxBuf[4];
voltage = BitConverter.ToSingle(tmpArray, 0);
tmpArray[0] = m_pRxBuf[5];
tmpArray[1] = m_pRxBuf[6];
tmpArray[2] = m_pRxBuf[7];
tmpArray[3] = m_pRxBuf[8];
current = BitConverter.ToSingle(tmpArray, 0);
mCurveStructVolSet.pointList.Add(currentTime, (float)lbDigitalMeter_Voltage_Set.Value);
mCurveStructVolGet.pointList.Add(currentTime, voltage);
mCurveStructCurSet.pointList.Add(currentTime, (float)lbDigitalMeter_Current_Set.Value);
mCurveStructCurGet.pointList.Add(currentTime, current);
lbDigitalMeter_Voltage_Get.Value = (double)voltage;
lbDigitalMeter_Current_Get.Value = (double)current;
thermometerVoltage.Value = voltage;
thermometerCurrent.Value = current;
break;
case (byte)COM_CMD.USART_S2M_RealTemp://当前温度
tmpArray[0] = m_pRxBuf[1];
tmpArray[1] = m_pRxBuf[2];
tmpArray[2] = m_pRxBuf[3];
tmpArray[3] = m_pRxBuf[4];
temp = BitConverter.ToSingle(tmpArray, 0);
thermometerTemp.Value = temp;
if (temp <= 40.0)
{
thermometerTemp.BackColor = Color.Green;
}
else if (temp <= 50)
{
thermometerTemp.BackColor = Color.Brown;
}
else
{
thermometerTemp.BackColor = Color.Red;
}
break;
}
Scale xScale = zedGraphControl1.GraphPane.XAxis.Scale;
if (currentTime > xScale.Max - xScale.MajorStep)
{
xScale.Max = currentTime + xScale.MajorStep;
xScale.Min = xScale.Max - 30.0;
}
//更新X和Y轴的范围
zedGraphControl1.AxisChange();
//更新图表
zedGraphControl1.Invalidate();
}
}
}
}
}
private byte USART_LastByte = 0;
private bool USART_BeginFlag = false;
private bool USART_CtrlFlag = false;
private long USART_RevOffset = 0;
private byte CheckSum = 0;
private bool AnalyzePackage(byte data)
{
if (((data == USART_FRAMEHEAD) && (USART_LastByte == USART_FRAMEHEAD)) || (USART_RevOffset > m_MaxPackageSize))
{
if (USART_RevOffset < 6 && USART_RevOffset > 0)
{
m_TotalRxLostPackages++;
}
//RESET
USART_RevOffset = 0;
USART_BeginFlag = true;
USART_LastByte = data;
return false;
}
if ((data == USART_FRAMETAIL) && (USART_LastByte == USART_FRAMETAIL) && USART_BeginFlag)
{
USART_RevOffset--;//得到除去头尾和控制符的数据的个数
m_RxPackageDataCount = USART_RevOffset - 1;
CheckSum -= USART_FRAMETAIL;
CheckSum -= m_pRxBuf[m_RxPackageDataCount];
USART_LastByte = data;
USART_BeginFlag = false;
if (CheckSum == m_pRxBuf[m_RxPackageDataCount])
{
CheckSum = 0;
return true;
}
m_TotalRxLostPackages++;
CheckSum = 0;
return false;
}
USART_LastByte = data;
if (USART_BeginFlag)
{
if (USART_CtrlFlag)
{
m_pRxBuf[USART_RevOffset++] = data;
CheckSum += data;
USART_CtrlFlag = false;
USART_LastByte = USART_FRAMECTRL;
}
else if (data == USART_FRAMECTRL)
{
USART_CtrlFlag = true;
}
else
{
m_pRxBuf[USART_RevOffset++] = data;
CheckSum += data;
}
}
return false;
}
private void serialPort1_DataReceived(object sender, SerialDataReceivedEventArgs e)
{
Thread.Sleep(5);
try
{
byte[] byteArray = new byte[serialPort1.ReadBufferSize];
int len = serialPort1.Read(byteArray, 0, byteArray.Length);
lock (this)
{
for (int i = 0; i < len; i++)
{
receiveByteQueue.Enqueue(byteArray[i]);
}
}
}
catch (Exception error)
{
MessageBox.Show("serialPort1_DataReceived" + error.ToString());
}
}
private void PackData2Frame(params byte[] byteArray)
{
if (serialPort1.IsOpen)
{
byte[] tmpByteArray = new byte[100];
byte len = 0;
tmpByteArray[0] = USART_FRAMEHEAD;
tmpByteArray[1] = USART_FRAMEHEAD;
CheckSum = 0;
len = 2;
foreach (byte tmp in byteArray)
{
if (tmp == USART_FRAMECTRL || tmp == USART_FRAMEHEAD || tmp == USART_FRAMETAIL)
{
tmpByteArray[len] = USART_FRAMECTRL;
len++;
}
tmpByteArray[len] = tmp;
CheckSum += tmp;
len++;
}
if (CheckSum == USART_FRAMECTRL || CheckSum == USART_FRAMEHEAD || CheckSum == USART_FRAMETAIL)
{
tmpByteArray[len] = USART_FRAMECTRL;
len++;
}
tmpByteArray[len] = CheckSum;
len++;
tmpByteArray[len] = USART_FRAMETAIL;
len++;
tmpByteArray[len] = USART_FRAMETAIL;
len++;
serialPort1.Write(tmpByteArray, 0, len);
}
}
private void ribbonButtonOpenCom2_Click(object sender, EventArgs e)
{
try
{
if (ribbonButtonOpenCom2.Text == "打开串口")
{
serialPort2.PortName = ribbonComboBoxCom2.TextBoxText;
serialPort2.BaudRate = int.Parse(ribbonComboBoxBaud2.TextBoxText);
serialPort2.StopBits = System.IO.Ports.StopBits.One;
serialPort2.Parity = System.IO.Ports.Parity.None;
serialPort2.DataBits = 8;
serialPort2.Open();
//成功打开后设置按钮相应的状态
ribbonButtonOpenCom2.Text = "关闭串口";
ribbonButtonOpenCom2.Image = Image.FromFile(Application.StartupPath + "\\ICON\\shutdown.ico");
ribbonComboBoxCom2.Enabled = false;
ribbonComboBoxBaud2.Enabled = false;
}
else
{
serialPort2.Close();
ribbonButtonOpenCom2.Text = "打开串口";
ribbonButtonOpenCom2.Image = Image.FromFile(Application.StartupPath + "\\icon\\standby.ico");
ribbonComboBoxCom2.Enabled = true;
ribbonComboBoxBaud2.Enabled = true;
}
}
catch (Exception error)
{
MessageBox.Show(error.ToString());
}
}
private void glassButtonCAL_Click(object sender, EventArgs e)
{
PackData2Frame(new byte[] { (byte)COM_CMD.USART_M2S_Cal});
}
private void glassButtonStepAdd_Click(object sender, EventArgs e)
{
PackData2Frame(new byte[] { (byte)COM_CMD.USART_M2S_StepAdd });
}
private void glassButtonStepSub_Click(object sender, EventArgs e)
{
PackData2Frame(new byte[] { (byte)COM_CMD.USART_M2S_StepSub });
}
}
}

复制代码

全部资料51hei下载地址：

DC_POWER.rar (1.32 MB, 下载次数: 17)

帐号		自动登录	找回密码
密码			立即注册

这是我做的一个关于dc_power的校准软件 附源码

这是我做的一个关于dc_power的校准软件附源码
